Talented Team Designs and Installs Multiple Roof Systems for Dickies Arena

Dickies Arena in Fort Worth, Texas, hosts the Fort Worth Stock Show and Rodeo as well as concerts and sporting events. Photos: Trail Drive Management Corp.

The new Dickies Arena in Fort Worth, Texas, was designed to echo the iconic Will Rogers Memorial Center, a historic landmark built in 1934. The site of the Fort Worth Stock Show and Rodeo as well as other concerts and sporting events, Dickies Arena was designed to provide a modern entertainment experience and configurable event spaces that would stand the test of time. The multiple roof systems on the project — including the plaza deck surrounding the arena — were essential in delivering on these goals.

Dickies Arena features a domed main roof with a cupola at the top that pays homage to its historic neighbor. “One of the major themes, especially of the dome roof structure itself, was to have a kind of throwback to the original Will Rogers Center, which is still there,” says Eric Nelson, AIA, RID, CCCA, vice president at HKS, the architect of record for Dickies Arena. “The Will Rogers Center was one of the first buildings of its type to have a long-span steel truss roof system. We used that existing structure as the inspiration for the roof structure inside the arena. We have these very thin, elegant looking trusses that are very art deco.”

The new structure’s domed roof is surrounded by low-slope roofs and complemented by two towers topped with metal roofs. Dickies Arena also features a pavilion with a standing seam metal roof, which sits on a plaza deck that serves as an outdoor event space as well as a giant roof system covering exhibit space and areas for housing rodeo livestock. The venue is also designed to provide excellent acoustics for concerts and features luxurious millwork and finishes throughout to provide a touch of elegance. “I like to say that it’s a rodeo arena, but it’s designed like an opera house,” Nelson says.

It took an experienced team of design and construction professionals to envision and execute the project, including HKS, the architect of record; David M. Schwartz Architects, the design architect; The Beck Group, the general contractor; Jeff Eubank Roofing Co., Inc., the roof system installer; and Sunbelt Building Services LLC, the insulation distributor and installer of the plaza deck.

The Dome

The roof system specified for the dome featured an 80-mil PVC system with decorative ribs manufactured by Sika Sarnafil. “The roof system is one that we use pretty regularly on our large sports projects, the Feltback PVC,” notes Nelson. “It’s a lot more durable than other single-ply roof membranes, so we really like it a lot. Dickies Arena is an arena that wasn’t just built for the next 20 years; it’s meant to be there for the next 100 years, so we wanted to make sure we used nothing but the highest-quality materials, especially with all of the hailstorms that we can get out there in Fort Worth.”

The pavilion has a Fabral double-lock standing seam roof system.

The roof system installer, Jeff Eubank Roofing Co., Inc. of Fort Worth, Texas, tackled the dome roof first, followed by the low-slope sections and the metal roofs. Work on the dome roof began in July of 2018. “The project progressed pretty quickly,” says Jeff Eubank, vice president of Jeff Eubank Roofing Co. “The dome in and of itself was like two different projects. The top half of the dome is pretty workable and walkable, and the bottom 40 percent of the dome is almost vertical.”

The Sarnafil Decor system was installed over an Epic acoustical deck, which posed some logistical and safety challenges. “We had to engineer special anchors because a typical tie-off anchor could not be used,” Eubank explains. “Before we could set foot on the job, we had to engineer special tie-off anchors which nested into the acoustical deck.”

Eubank and a structural engineer worked with Epic Deck to construct anchor points that would meet requirements for fall arrest. The half-inch aluminum, F-shaped anchors were designed to rest in the flutes of the acoustical deck and featured a ring provide a tie-off point. They were set in place using a crane.

Safety concerns included the Texas weather. “Our biggest challenge came with the heat,” says Eubank. “Summers in North Texas are brutal enough, but at the end of last summer, a high pressure system just stalled over Fort Worth. We were in the middle of a drought, with temperatures up to 110 degrees. You’re up on a deck with nowhere to hide, and with it was pushing 200 degrees up there. From a life safety standpoint, we ended up pushing the dome installation to night work.”

The main roof on the arena’s dome was topped with an 80-mil PVC system with decorative ribs manufactured by Sika Sarnafil.

Crews applied approximately 250,000 square feet of material on a near vertical application at night, with lighting provided by six tower cranes. The project required 100 percent tie-off of men and equipment.

The original plan for the dome was to work top to bottom, but as work began, the cupola was incomplete, so the safety and logistical plans had to be radically changed. “We ended up basically making two rings around the dome, doing the near-vertical portion — the bottom 30 or 40 percent — first,” Eubank says. “We moved up and did another 360-degree loop around the top half of the dome once the cupola was done.”

The roof system was installed over the acoustical deck and loose-laid filler. After a 5/8-inch DensDeck Prime substrate board was installed, crews mechanically fastened two layers of Sarnatherm polyiso and 1/4-inch DensDeck Prime. They adhered the Sarnafil G-410 20 Feltback membrane, which was produced in a custom color called Agreeable Gray.

After the membrane was installed, the PVC ribs were heat welded into place to give it the look of a standing seam roof. “We installed over 16 miles of custom-color Decor ribbing,” notes Eubank.

The Logo on the Roof

The dome roof also prominently features the Dickies Arena logo, which took some advance planning. “We left an area of the ribs out on the east side anticipating the logo up there,” Eubank says. “That’s in another custom color. Sarnafil ran the custom color and templated the letters. The logo is roughly 130 feet by 10 feet, so we received a giant D, a giant I, a giant C, and so forth. Once these things are installed, there is no pulling them up — your only option is to tear the roof off. So, imagine working with a 10-foot letter, 200 feet up in the air, on a slope, and making sure it’s level.”

Eubank Roofing came up with a plan to use a section of 60-mil PVC membrane as a backer sheet. “We laid out this big backer sheet in Agreeable Gray and stenciled all of the letters across it,” Eubank explains. “We took the backer sheet up, got it lasered and leveled, and installed the solid backer sheet on the dome. It already had the stencils on it, so we were able fall back and install the individual letters. We didn’t need to line them up — we just had to fill in the blanks.”

The last steps in the dome installation included installing ribs in a second custom color to go through the letters. Helicopters also brought in three large Dickies signs, which were placed atop concrete pedestals treated with a Sarnafil liquid membrane.

Flat Roofs and Metal Roofs

On the low-slope sections that surround the dome, the Sarnafil G-410 Feltback was installed over structural concrete and fully tapered polyiso. “There is a tremendous amount of masonry work on this project, and it is gorgeous,” Eubank notes. “It was important, though, on the low-slope portions to let the brick work and stone work wrap up before any roofing membranes were installed.”

The design of the arena echoes the iconic Will Rogers Center, which was the inspiration for the thin, elegant steel trusses.

A vapor barrier was installed over the structural concrete deck. After masonry work was completed, crews installed a fully tapered polyiso system in ribbons of OM Board adhesive, then adhered 1/4-inch DensDeck Prime and the 80-mil PVC membrane.

The complex also features two different metal roof systems from Fabral. On the north side of the building, the two towers were capped with a flat-seam panel. Down at the plaza level, the pavilion was topped with a double-lock standing seam roof system featuring Fabral 24-gauge Galvalume Power Seam panels.

According to Nelson, an area underneath the pavilion serves as a warm-up arena for horses during the rodeo, so the design was meant to evoke a rustic effect. “The cladding on that building is all quarter-inch steel with rivets on it,” Nelson points out. “Galvalume is finished to look like galvanized sheet steel, but it won’t tarnish or turn white or black like galvanized steel would — which is why they selected it — but it still has that kind of throwback look of a barn.”

Out of the Gate

Dickies Arena is now open to the public and is gearing up to host its first rodeo. The experienced team that built it has moved on to other projects, but they look back on their work on the new landmark venue with pride.

“I’m very proud of the people that I work with and the thought and care that they put into the project and the time that we take,” Eubank says. “A lot of our work is negotiated re-roofing, and I think that’s in large part because we take the time to think through a problem and come up with the best solution. I think that’s really highlighted here. You’ve got to take your time and do it right — and do it efficiently.”

Eubank commends the general contractor, H.C. Beck, for a smoothly operating jobsite. “The job was very well managed from a safety standpoint,” Eubank says. “The general contractor did a fabulous job of manipulating trade work and making sure no one was working overtop of anyone else.”

Nelson agrees, crediting the teamwork at every phase of the project for the successful outcome. “The partnership with David M. Schwartz as the design architect really worked very smoothly from our side,” Nelson says. “We worked very well with a talented team of consultants and who specialize in sports design. It’s a one-of-a-kind type of project.”

“My family has been in Fort Worth for five generations, and this is a project I’m just tickled to death about for the city,” says Eubank. “To be part of its install means a lot.”

TEAM

Architect of Record: HKS Inc., Dallas, Texas, www.hksinc.com

Design Architect: David M. Schwartz Architects, Washington, D.C., www.dmsas.com

General Contractor: The Beck Group, Dallas, Texas, www.beckgroup.com

Roofing Contractor: Jeff Eubank Roofing Co., Inc., Fort Worth, Texas, www.eubankroofing.com

MATERIALS

Dome Roof

Roof Membrane: Sarnafil G-410 20 Feltback PVC with Sarnafil Decor ribs, Sika Sarnafil, https://usa.sika.com/sarnafil

Acoustical Deck: Epic Metals, www.epicmetals.com

Cover Boards: 5/8-inch DensDeck Prime and 1/4-inch DensDeck Prime, Georgia-Pacific, www.buildgp.com

Low-Slope Roof

Roof Membrane: Sarnafil G-410 20 Feltback PVC, Sika Sarnafil

Cover Board: 1/4-inch DensDeck Prime, Georgia-Pacific

Metal Roof

Standing Seam Panel: 24-gauge Galvalume Power Seam, Fabral, www.fabral.com

Underlayment: Fabral HT, Fabral

Plaza Deck

Waterproofing Membrane: TREMproof 6100, Tremco, www.tremcosealants.com

Insulation: Foamular 600, Owens Corning, www.owenscorning.com

Brick Pavers: Hanover, www.hanoverpavers.com

Specialty Coating Creates Weathered Metal Appearance

Fabral has added the Weathered Metal Series to its line of Specialty Coatings. Fabral has added the Weathered Metal Series to its line of Specialty Coatings. Users have a choice of two stages of aged steel—moderately weathered Raw and more heavily weathered Robust. According to the manufacturer, each pattern is crafted and engineered to give any roofing or cladding project the authentic look of timelessness. The Weathered Metal Series is a fluoropolymer coating system that uses cool pigment technology applied over GALVALUME-coated steel sheets.

Liberty University Taps Experienced Team for Indoor Practice Facility

Liberty University

Photo: Leah Seavers. Copyright Liberty University

While he was a student in the 1970s at Liberty Baptist College in Lynchburg, Va., Craig McCarty took a job with a roofing company to help him pay his way through school. One of his business courses required students to set up a model business, so McCarty set up a fictional roofing company.

When a recession forced his boss to close down the company where he worked, McCarty turned his classroom project into reality. He got his contractor’s license and formed his own roofing business at the age of 20. More than 40 years later, he is installing roofs on the same campus he once took classes for a college now known as Liberty University.

McCarty is the president of McCarty Roofing, headquartered in Lynchburg, Va. This year the company installed the standing seam metal roof on Liberty University’s new indoor football practice facility, the fourth building the company has worked on at the school. McCarty has always been fascinated by metal roofs, and he estimates that 70 percent of the company’s business comes from the metal segment of the market. “It’s our passion, and we’re really good at it,” he says.

Liberty University’s new indoor practice facility encloses an entire regulation football field.

Liberty University’s new indoor practice facility encloses an entire regulation football field. The structural metal roof system is made of panels that run the entire width of the building.

He’s found a great place to ply his trade in Liberty University, which has made roofs manufactured by Fabral Metal Wall and Roof Systems into something of a signature architectural style. Other Fabral roofs at the university include those on Williams Stadium, Hancock Welcome Center, Jerry Falwell Library, and the LaHaye Recreation and Fitness Center.

According to Jerry Wandel, Fabral’s Mid-Atlantic territory manager, based in Richmond, Va., Fabral and distributor NB Handy in Lynchburg have partnered to provide architectural metal enclosure systems for 13 buildings on the campus since 2010.

The new practice facility encloses an entire regulation football field, and the design for the structural metal system on the vaulted barrel roof called for panels—many as long as 240 feet—that would run the entire width of the building.

Fabral’s Stand’N Seam 24-gauge panels in Dark Bronze were specified for the project. According to Wandel, the product features a unique stainless-steel clip design and double lock-seamed side joints that allow panels to expand and contract throughout their entire length. The system had been installed successfully on indoor practice facilities at other colleges, including Georgia Tech, the University of Virginia, Virginia Tech and Virginia Military Institute.

“When you run a panel that long, clearly one of the biggest concerns is expansion and contraction,” Wandel says. “Our Stand’N Seam product just lends itself to a project that has 240-foot panels. This one was right in our wheelhouse.”

Riding the Curve

The first task for McCarty Roofing was drying in the metal deck. Crews installed two layers of 2 ½ inch polysio and covered the insulation with Blueskin, a self-adhering underlayment manufactured by Henry.

The metal panels were fabricated on the site. Fabral supplied the roll former and brought in Ray Berryhill to operate the equipment. “Ray has done all of these jobs for us,” notes Wandel. “We want to make sure the contractor is in position to have a quality installation. Ray has so much knowledge about these jobs. He was the perfect person to execute this one.”

The panels were fabricated on the site.

The panels were fabricated on the site. The roll former was lifted into place at the edge of the roof by crane, and panels were rolled directly onto the roof and stacked for installation.

A crane was used to lift the roll former into place at the edge of the roof. “We were able to set the front two feet of the roll former in the built-in steel gutter, and then drop the back end of the machine down to the proper angle so we could roll the panels right onto the roof,” McCarty explains. “About every 15 or 20 feet up the roof we would stack some insulation, so the panel would float across the roof. Once it hit the top and went down the other side, it could just ride the roof down.”

The original plan was to install the panels as they came off the roll former, but McCarty decided it would be more efficient to run all of the panels, stack them on the roof, and install them once all of the panels were fabricated. “We had a large crane on site that was costing us money, and we had the people from Fabral there,” he recalls. “I went to the construction manager and said, ‘It’s going to make a lot more sense if we get all of the panels for the project up on the roof as quickly as possible.’”

The 4,000-pound metal coils typically supplied enough material for 8-10 panels, so Berryhill would run 8-10 panels at a time as crews from McCarty Roofing stacked them. When the roll former was lowered to the ground to load another coil, workers would strap the panels into place, figure out how much area the panels would cover, and set up again another 20 feet or so down the roof to receive the next batch. “We had a series of 15 or 20 straps for each bundle of panels,” says McCarty. “We had to be careful, but with eight people, you could pick up the panel and gently set it down.”

After the roll forming crew was done, the panels were pulled off of the stacks and installed. “It was a pretty extreme radius, but the panels just laid down on the roof perfectly,” McCarty recalls. “The design worked out really well.”

Liberty University

Photo: Joel Coleman. Copyright Liberty University

The built-in gutter gave crews a good location to set the bottom edge of the panels. “At the eaves, the roof pitch was very steep—maybe 12:12—and it was almost flat at the top,” notes McCarty. “We had to be tied off 100 percent of the time. We used retractables, but the safety equipment still limited our movement. It was pretty difficult for the guys working the first 30 or 40 feet.”

The roof featured large skylights, which made the metal panel layout critical. The design also featured upper and lower sections that stepped down around large windows, which made for some tricky details. “At the gable ends, we had to make the cuts at an angle,” McCarty notes. “We cut the panels in place with drill shears and hand turned them with tongs to lock then onto a cleat.”

The schedule was tight, and weather was also a concern. “It was in the dead of winter,” McCarty recalls. “We started laying panels in January. Fortunately, we had a mild winter, but at times it was like a wind tunnel. You’re not going to pick up a 240-foot panel in 35 mile-an-hour winds, so there were days we just weren’t able to work.”

The project was wrapped up at the end of May, and McCarty credits the decision to stack the panels as one of the keys to meeting the deadline. “It was the right call,” he says. “The time we saved made up for the lost days due to the weather and helped us complete the job on time.”

TEAM

Architect: VMDO Architects, Charlottesville, Va., VMDO.com
Construction Manager: CMA Inc., Lynchburg, Va., CMAinc.us
Roofing Contractor: McCarty Roofing Inc., Lynchburg, Va., McCartyroofing.net
Distributor: NB Handy Co., Lynchburg, Va., NBhandy.com
Metal Roof System Manufacturer: Fabral Metal Wall and Roof Systems, Fabral.com

Standing-seam Roof Can Be Bent, Curved and Tapered

Fabral adds Powerseam II, a mechanically seamed structural standing-seam roof panel system, to its offerings.

Fabral adds Powerseam II, a mechanically seamed structural standing-seam roof panel system, to its offerings.

Fabral has added Powerseam II, a mechanically seamed structural standing-seam roof panel system, to its offerings. As with the existing Powerseam profile, Powerseam II can be bent, curved and tapered. Powerseam II is offered in 0.032-inch aluminum and 26-, 24- and 22-gauge steel. Stiffening ribs and shadow lines are available. The panel system, which is designed for education and sports environments, can be fabricated in the factory and onsite for projects requiring a long-length panel. Powerseam II panels are available in Fabral’s full architectural color palette. Custom colors are available upon request, subject to common industry minimums.

Fabral Expands Flat Sheet and Slit Coil Program

Fabral is expanding its flat sheet and slit coil program.

Fabral is expanding its flat sheet and slit coil program.

Fabral is delivering on its commitment to placing customers first. Fabral is expanding its flat sheet and slit coil program in the Mid-Atlantic and Northeastern U.S. New slitting and blanking capacity is being added.

Flat sheet and coil compliments Fabral’s total metal wall panel and roofing system product line. The company’s complete flat sheet and slit coil offering is available through the Lancaster operation. Products are fabricated on a short order cycle time basis and delivered in the quality fashion that Fabral customers expect and appreciate.

The Lancaster plant will stock Fabral’s full architectural color palette. Custom colors will be available upon request subject to common industry minimums.

Fabral will be further expanding its manufacturing footprint and operational capacity over the coming months to enhance service, quality and product offering.

Manufacturers Partner to Offer Polyiso

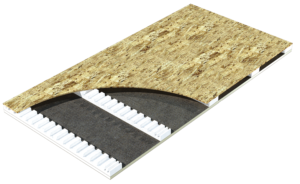

Fabral has partnered with Atlas Roofing Corp. to provide closed-cell foam insulation, also known as polyiso, for reducing thermal conductivity between the interior and exterior of a building.

Fabral has partnered with Atlas Roofing Corp. to provide closed-cell foam insulation, also known as polyiso, for reducing thermal conductivity between the interior and exterior of a building.

Fabral has partnered with Atlas Roofing Corp. to provide closed-cell foam insulation, also known as polyiso, for reducing thermal conductivity between the interior and exterior of a building. Fabral offers three insulation products—ACFoam-III, ACFoam Nail Base and ACFoam CrossVent and fasteners—to simplify the ordering process for its customers. Suited for Fabral standing-seam metal roof systems, polyiso is manufactured using CFC-, HFC- and HCFC-free foam technology and is recognized by GREENGUARD as resistant to mold. The insulation offers high-unit R-value per inch, fire performance, no ozone depletion potential, and can be recycled or reused.

App Increases Ability to Apply Metal Panel Systems

Fabral, a supplier of metal roofing and wall panels, has launched a mobile app to meet the demands of architects and contractors on the go.

Fabral, a supplier of metal roofing and wall panels, has launched a mobile app to meet the demands of architects and contractors on the go.

Fabral, a supplier of metal roofing and wall panels, has launched a mobile app to meet the demands of architects and contractors on the go. Inspiring project images, product information, metal panel and CSI specs, color charts, and more are now available for mobile access through Apple and Android devices. This enhancement increases customer ability to visualize, demonstrate, specify and apply Fabral metal panel systems. The app can be downloaded at no charge through the appropriate Play Store. Positively received at MetalCon 2015, Fabral customers can also save a thumbnail on their own websites to make the app more widely available.

Best Roofing Projects of the Carolinas

We celebrate the best roofs installed in North and South Carolina with our final issue of Carolinas Roofing. From metal to shingles to single ply and coatings, these roof coverings protect newly built and reroofed schools, homes, manufacturing facilities, city-service buildings and more.

Judy W. Rose Football Center-Fieldhouse and the McColl-Richardson Field Press Box, University of North Carolina, Charlotte

Judy W. Rose Football Center-Fieldhouse and the McColl-Richardson Field Press Box, University of North Carolina, Charlotte

Judy W. Rose Football Center-Fieldhouse and the McColl-Richardson Field Press Box, University of North Carolina, Charlotte

Team

Roofing contractor: Baker Roofing Co., Charlotte, www.bakerroofing.com
Designers: Jenkins-Peer Architects, Charlotte, www.jenkinspeer.com, and DLR Group, www.dlrgroup.com
Construction manager: Rogers PCL Russell, a joint venture of Rodgers Builders Inc., Charlotte, www.rodgersbuilders.com; PCL Constructors Inc., Charlotte, www.pcl.com; and H.J. Russell & Co., Atlanta, www.hjrussell.com
Metal roofing manufacturer: McElroy Metal, Bossier City, La., www.mcelroymetal.com

Roof Materials

New metal roofing matches the campus scheme on many other buildings. It also offers overall longevity, durability and low-maintenance features.

The field house and press box are covered with 11,000 square feet of Maxima 216, 24-gauge Kynar in Slate Gray and 4,000 square feet of 24-gauge flat stock metal roofing and low-slope roofing trim.

Roof Report

2013-14 is the first year for Charlotte 49ers football. This new 15,000-seat stadium was built for the new team and is designed to be expanded to 40,000 seats. The main building, the Judy W. Rose Football Center-Fieldhouse, located in the south end zone, has been named after the university’s longtime athletic director.

The stadium includes several other buildings, including the McColl-Richardson Field Press Box, named in honor of Hugh McColl, former Bank of America CEO, and Jerry Richardson, owner of the NFL’s Carolina Panthers.

Photo courtesy of McElroy Metal, Bossier City, La.
