Code-mandated Thermal Insulation Thicknesses Require Raising Roof Access Door and Clerestory Sill Details

PHOTO 1: The new roof has been installed at SD 73 Middle School North and it can clearly be seen that the door and louver need to be raised. On this project, there were four such conditions.

PHOTO 1: The new roof has been installed at SD 73 Middle School North and it can clearly be seen that the door and louver need to be raised. On this project, there were four such conditions.

The most common concern I hear related to increasing insulation thickness (a result of increased thermal values of tapered insulation), especially in regard to roofing removal and replacement, is, “OMG! What about the roof access door and/or clerestory?” You can also include, for those knowledgeable enough to consider it, existing through-wall flashing systems and weeps.

I’m a bit taken aback by this concern; I have been dealing with roof access doors and clerestory sills for the past 30 years and, for the most part, have had no problems. My first thought is that roof system designers are now being forced to take these conditions seriously. This is a big deal! They just have no clue.

In the next few pages, I’ll review several possible solutions to these dilemmas, provide some detailing suggestions and give you, the designer, some confidence to make these design and detailing solutions. For the purpose of this article, I will assume reroofing scenarios where the challenge is the greatest because the conditions requiring modification are existing.

THE ACCESS DOOR

For many and perhaps most contractors who sell and, dare I say, design roofs, it is the perceived “large” expense of modifying existing conditions that is most daunting. Often, these conditions are not recognized until the door sill is several inches below the new roof sur- face. Not a good predicament. Planning for and incorporating such details into the roof system design will go a long way to minimizing costs, easing coordination and bringing less tension to a project.

PHOTO 2: The sill has been raised and new hollow metal door, frame and louver have been installed at SD 73 Middle School North. Door sill and louver sill flashing are yet to be installed, as are protective rubber roof pavers.

PHOTO 2: The sill has been raised and new hollow metal door, frame and louver have been installed at SD 73 Middle School North. Door sill and louver sill flashing are yet to be installed, as are protective rubber roof pavers.

Door access to the roof is the easiest method to access a roof. These doors are typically off a stair tower or mechanical penthouse and most often less than 12 inches above the existing roof as foresight was not often provided (see photos 1, 2 and 6 through 9). With tapered insulation thickness easily exceeding 12 inches, one can see that door sills can be issues with new roof systems and need to be considered.

Designers should first assess the condition of the door and frame, typically hollow metal. Doors and frames that are heavily rusted should not be modified and reused, but discarded, and new ones should be specified. The hardware too needs to be assessed: Are the hinges free of corrosion and distortion? Is the closure still in use or detached and hanging off the door frame? The condition of door sweeps, knobs, lockset and weather stripping should also be determined. Ninety-nine percent of the time it is prudent to replace these parts.

As the roof system design develops, the designer should start to get a feel for the thickness of insulation at the door. It is very important the designer also consider the thicknesses that vapor retarders, bead and spray-foam adhesives, cover and board and protective pavers will add. These can easily be an additional 4 inches.

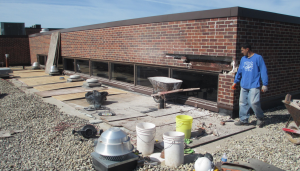

PHOTO 3A: The new roofing at SD 73 Elementary North was encroaching on this clerestory sill and required that it be raised. As part of this project, the steel lintel was exposed. It was prepped, primed and painted and new through-wall flashing was installed.

PHOTO 3A: The new roofing at SD 73 Elementary North was encroaching on this clerestory sill and required that it be raised. As part of this project, the steel lintel was exposed. It was prepped, primed and painted and new through-wall flashing was installed.

Once the sill height is determined, the design of the sill, door and frame can commence. If the sill height to be raised is small—1 1/2 to 3 inches—it can often be raised with wood blocking cut to fit the hollow metal frame, flashed with the roofing membrane, metal sill flashing and a new door threshold installed, and the door and frame painted. This will, of course, require the removal of the existing threshold and door which will need to be cut down to fit and then bottom-sealed with a new metal closure (see details A and B, page 3).

When the door sill needs to be raised above 3 inches, the design and door considerations increase. Let’s consider that the door and frame is set into a masonry wall of face brick with CMU backup. Although most hollow metal doors are 7 feet 2 inches to match masonry coursing, after the modification the door may be shorter. For example, if a door is 7 feet 2 inches and you must raise the sill 5 inches, the new door and frame will need to be 6 foot 9 inches.
PHOTOS & ILLUSTRATIONS: Hutchinson Design Group Ltd.
